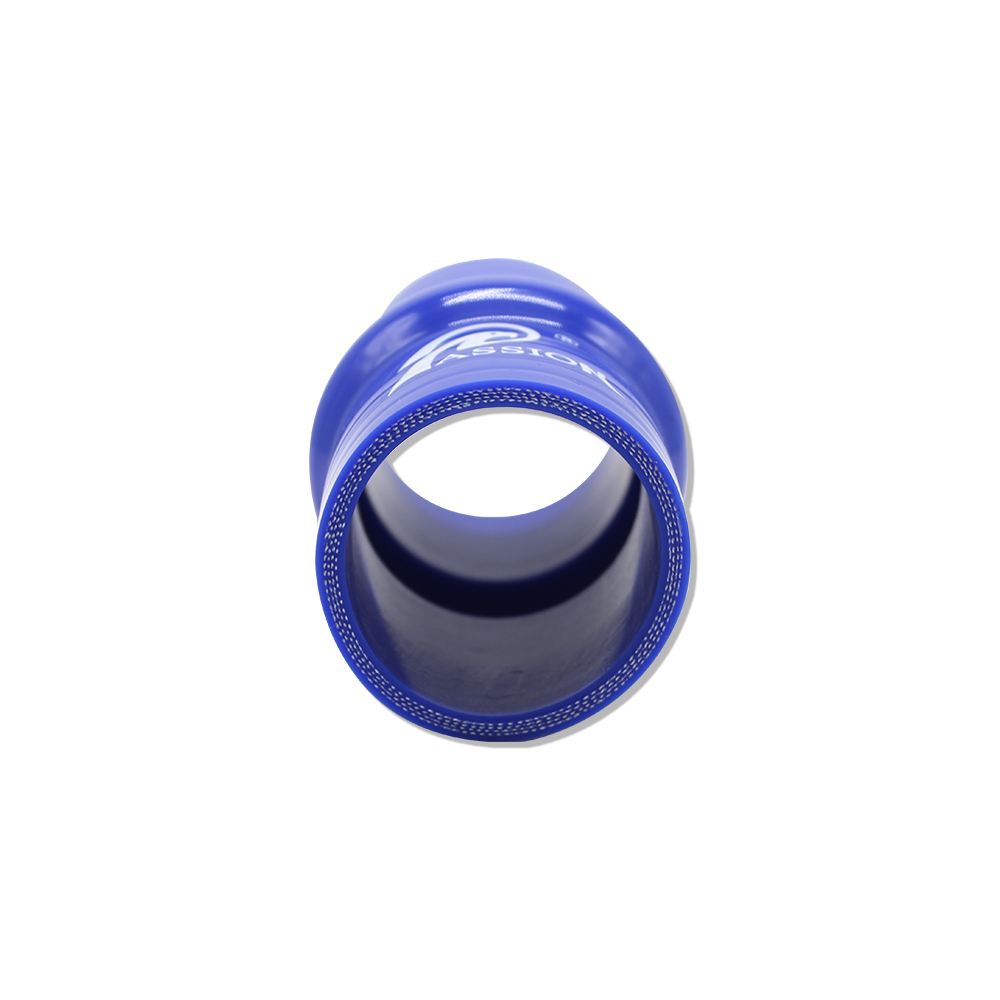

PASSION’s line of silicone hose products are used in coolant and high-temperature applications. The hose products are available for turbo and charge air coolers in straights and formed hoses for engines.
| ID | 6.5mm-102mm |
|---|---|
| Reinforcement | Polyester, Aramid |
| Wall Thickness | 4mm, 4.5mm, 5mm, or as request |
| Color | Blue, Red, Black, Green etc. |
| Temperature | -40℃ to 250℃（-40℉ to 482℉） |
Applications
•Heavy duty truck and bus engines
•Buses and passenger cars
•Vehicles with diesel engine
•Marine
•Agriculture & Forestry
•For use in high vibration, hot and cold air aspiration units
Operating Temperatures
•Polyester braid reinforced: -54℃ to +220℃ (-65℉ to 428℉)
•Aramid braid reinforced: -54℃ to +260℃ (-65℉ to 500℉)
HOSE SPEC.:
For air/water not fuel/oil
For fuel and oil use, hose need to be lined with FLUOROSILICONE
Color: Blue, Red, Black etc. (Inner lining can adopt different colors)
Wall Thickness: 4mm, 4.5mm, 5mm, or as request
Length: 76mm / 102mm
Size Tolerance: ID<2″, ± 0.5mm; ID>2″, ± 1mm
Surface: Smooth or Cloth
LOGO: PASSION, or as request
Passion for Hose, Passion for you!
