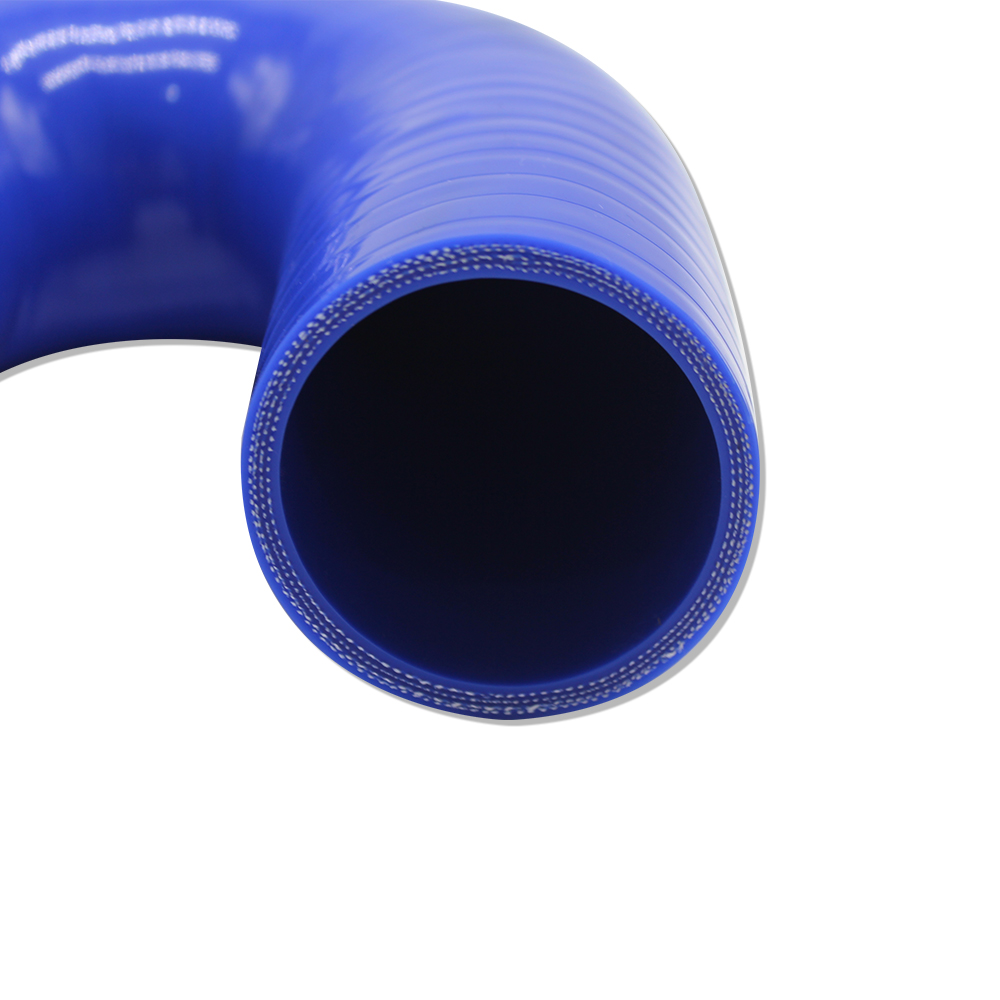

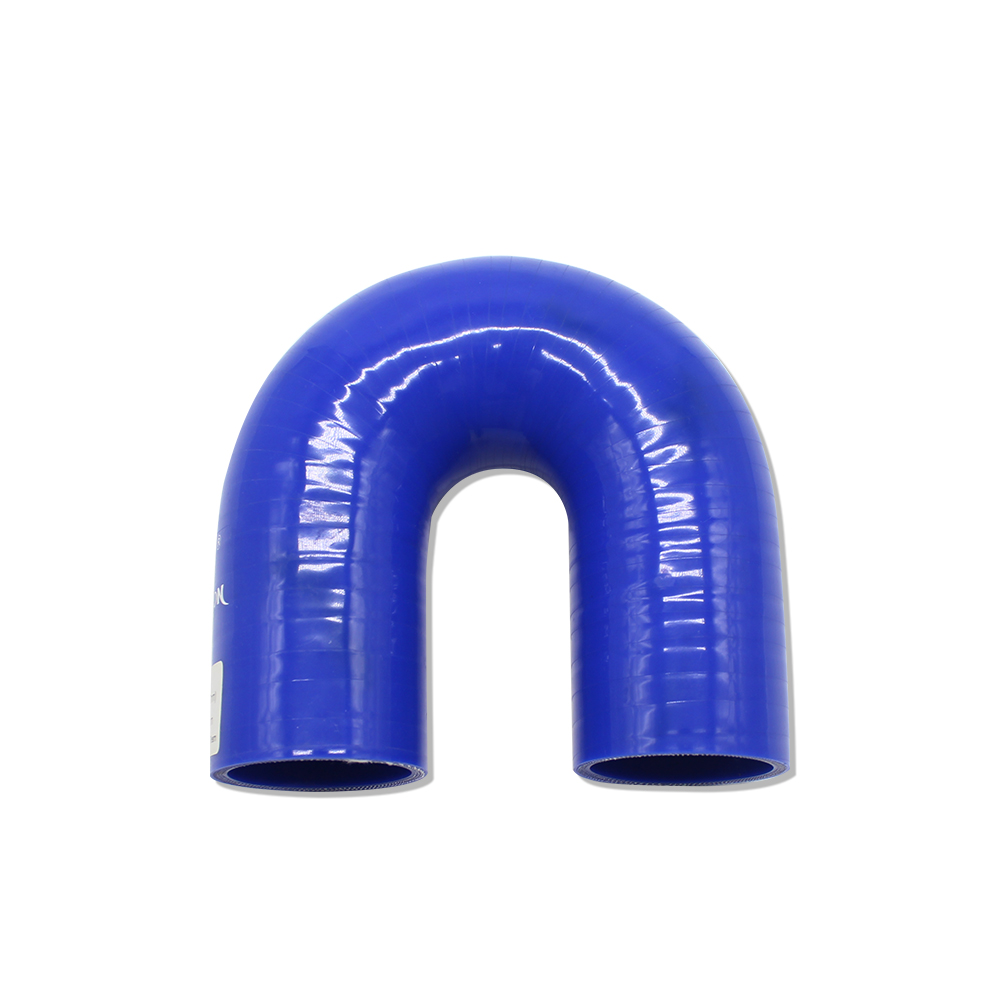

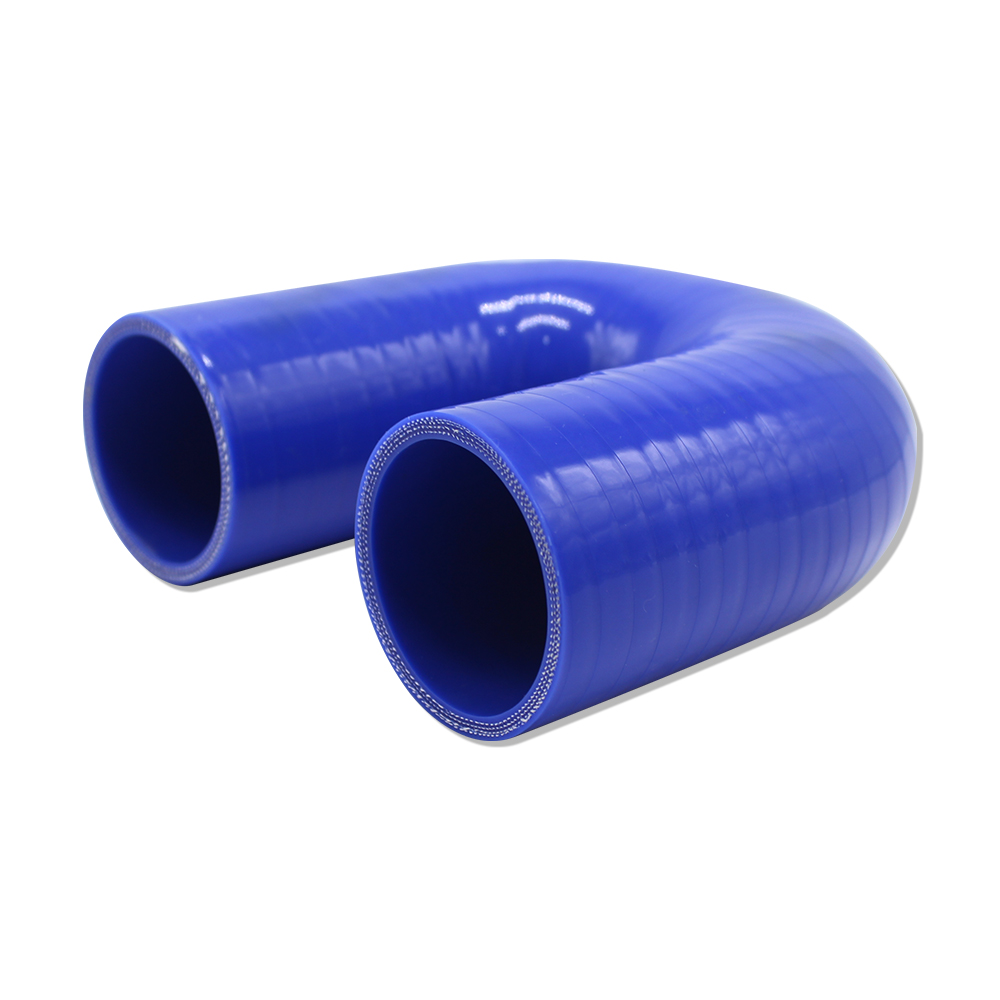

180 Degree U Bend Elbow Silicone Hose

PASSION’s line of silicone hose products are used in coolant and high-temperature applications. The hose products are available for turbo and charge air coolers in straights and formed hoses for engines.

Additional information

ID

6.5mm-102mm

Reinforcement

Polyester, Aramid

Wall Thickness

4mm, 4.5mm, 5mm, or as request

Color

Blue, Red, Black, Green etc.

Temperature

-40℃ to 250℃(-40℉ to 482℉)

Product Details:

Applications

•Heavy duty truck and bus engines

•Buses and passenger cars

•Vehicles with diesel engine

•Marine

•Agriculture & Forestry

•For use in high vibration, hot and cold air aspiration units

Operating Temperatures

•Polyester braid reinforced: -54℃ to +220℃ (-65℉ to 428℉)

•Aramid braid reinforced: -54℃ to +260℃ (-65℉ to 500℉)

HOSE SPEC.:

For air/water not fuel/oil

For fuel and oil use, hose need to be lined with FLUOROSILICONE

Color: Blue, Red, Black etc. (Inner lining can adopt different colors)

Wall Thickness: 4mm, 4.5mm, 5mm, or as request

Length: 102mm / 125mm / 152mm

Size Tolerance: ID<2″, ± 0.5mm; ID>2″, ± 1mm

Surface: Smooth or Cloth

LOGO: PASSION, or as request
